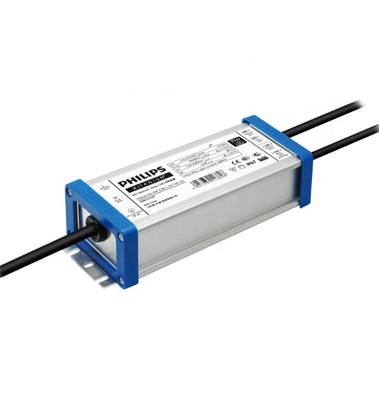

Dim Flood Light 35W 0.7A 1-10V PHILIPS LED Xitanium Outdoor Driver

1 Piece
MOQ
Dim Flood Light 35W 0.7A 1-10V PHILIPS LED Xitanium Outdoor Driver
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: 929001425780
Output Power: 35W
Output Type: Single
Input Voltage: 230V
Output Frequency: 50Hz/60Hz
Output Current: 0.07-0.7A
Product description: Xitanium Dim 35W 0.7A 1-10V PHILIPS LED Outdoor Driver
12NC: 929001425780
Efficiency: 92%
Packing: Carton
Ambient Temperature: -40...+55
Application: Flood Light
Warranty: 5 Years
Certificering: CE / CCC / ENEC / CB
Lifetime: 50,000 Hours
Protection Class: Class I
Basis informatie
Certificering: CE / CCC / ENEC / CB
Model Number: 929001425780
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Led Drivers and modules: Philips original carton packing with MOQ.(usually 10pcs or 12pcs in one carton.) Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost.
Productomschrijving
Product Description

Product Overview

Xitanium LED-based light sources are an excellent solution for outdoor environment. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and ePcient LED Drivers. The new Philips Xitanium Fixed Output and Dimmable (1-10V) LED Outdoor Drivers are specifically designed to deliver reliable performance and protection while meeting the strict performance, approbation and application requirements.

Benefits.

• Ultimate robustness and reliability secure the lowest luminaires maintenance overtime
• Long lifetime and high survival rate thanks to superior thermal management
• Consistent waterproof performance throughout the lifecycle
• Easy to design-in, based on extra EMI margin for independent use
• Compliance with IEC and UL standards, suitable for various markets
• Backed by 5 year warranty from a company you can trust


Features.

• Proven robustness and reliable electronics driver design
• Achieving highest efficiencies based on advanced technology
• Extremely long lifetime, fitting with harsh outdoor applications
• Suitable for Class I isolated luminaires
• Authorized certificates: UL / CSA/ CE / CCC / ENEC/ CB

Application.

• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting





Datasheet

Electrical Input data

Specification item
Value
Unit
Condition
Rated input voltage range
110...277
Vac
Nominal input voltage
230
Vac
Rated input frequency range
47...63
Hz
Performance range
Rated input current
0.174
A
@ full load
Max. input current
0.39
A
@ minimum input voltage AC
Rated input power
40
W
@ full load
Power factor
≥ 0.95
@ full load
≥ 0.92
@ 70% load
Total harmonic distortion
≤ 10
%
@ full load
EPciency
≥ 88
%
@ 220V @ full load
Input voltage AC range
99...305
Vac
Performance range
Isolation Input to Output
Basic

Electrical Output data

Specification item
Value
Unit
Condition
Regulation method
Constant Current
Output voltage
18...50
Vdc
Output voltage max.
100
V
Peak voltage at open load
Output current
0.07...0.7
A
Full output current setting
Output current min dimming
70
mA
Output current tolerance
± 5
%
Output current ripple LF
≤ 5
%
Ripple = peak/average @ 1KHz
Output current ripple HF
≤ 15
%
Output power
1.5...35
W
Full output

Electrical Data Control Input

Specification item
Value
Unit
Condition
Control method
1-10V
Output current amplitude dimming
Dimming range
10...100
%
Default range
Galvanic Isolation
Basic

Operational Temperature and Humidity

Specification item
Value
Unit
Condition
Ambient Temperature
-40 ... +55
°C
Higher ambient temperature allowed as long
as Tcase-max is not exceeded
10...90
%
Tcase-max
80
°C
Maximum temperature measured at Tcase-point
Tcase-cut ou
83
°C
Power to LEDs is reduced

Lifetime

Specification item
Value
Unit
Condition
Driver lifetime
50,000
hours
Measured temperature at Tcase-point is Tcase-max

Programmable Features

Specification item
Value
Remark
Condition
Set output current (AOC)
Not applicable

Features

Specification item
Value
Remark
Condition
Open load protection
Yes
Automatic recovering
Short circuit protection
Yes
Automatic recovering
Over power protection
Yes
Automatic recovering
Hot wiring
No
Suitable for fixtures with protection class
I
per IEC60598
Over temperature protection driver
Yes
Automatic recover

Dimensions

Specification item
Value
Unit
Condition
Length (A1)
175
mm
Width (B1)
68.2
mm
Height (C)
45
mm
Fixing hole distance (D1)
4
mm
Fixing hole distance (A2)
162
mm
Packing & Delivery
Packaging
Size
26*21.5*13.5cm
Weight
12kg



Packaging Details
Led Drivers and modules: Philips original carton packing with MOQ.( 12pcs in one carton.)
Led Light: Philips original carton packing(usually 1pcs in one carton)
Customize shipping packing (eg Composite wooden pallet, cardboard pallets and composite wooden cases package) are available at additional cost.
Our Company

Shanghai Bipeng Lighting Limited Company is the core distributor of Philips professional lighting products. We mainly focus on LED Drivers and Modules, LED lights which are mainly applied on roads and Industry factories. Every product catalog is composed of over hundreds of product code.

We can offer out standing lighting solutions, depending on our high efficiency management team and strong technician team. Through these years' efforts, we have been recognized and appreciated by many clients coming from mainland,southeast Asia,Europe and America market.

We promise to providing our clients with high quality products and services. At the same time, we have been working with excellent Surge protective device Manufacturer- CITEL and LED dimming Products Manufacturer -EUCHIPS.


FAQ


Q1. Are you Philips Authorized agents?
A:Yes, we can offer Philips Authorized Certificate.

Q2: What's your main products?
Led Drivers and modules. Road Light, Street Light and Highbay Lights.
We still can offer one step lighting Solution, depending on good cooperation relation with China(mainland) Lighting Manufacturers.

Q3. How about the delivery time ?
LED driver and modules Sample: 5-7days
LED driver and mudules Bulk Order: need recheck with us, usually 30-40 days.
LED Lights(sample& Bulk Order): need recheck with us, usually 30-40 days.

Q4. What is the Transaction terms ?
A: Samples: Cash before shipping.
B: Bulk Order: 50% in advance(deposit), 50% of the balance should be paid before shipping.

Q5. How is the Logistics and Transportation time ?
A Samples: International Express Service- DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
B.Bulk order : Airline and Sea shipping are available. Transportation time: need recheck with logistic company.

Q6. Do you have a minimum order?
Bulk order: Philips Original MOQ Packing(usually, 10pcs -12pcs in one carton).

Q7: How Long is the Quality assurance Time?

Philips Official Quality Assurance Time(Usually, 3-5years depend on products.)
